Editor's note: This review comes from the player Mike(full name: G. Michael Huffman), who provided an in-depth evaluation of the Rokr Marble Explorer Marble Run LG503. As an experienced engineer, Mike completed this model successfully and improved its performance based on his experience to ensure even better functionality. For Mike, this building journey undoubtedly represented a meaningful exploration, and we are delighted that he holds such affection for our wooden models.

Moreover, his feedback is an incredibly valuable driving force for us. It encourages us to continue working hard in developing new products and reminds us to keep paying attention to the upgrade and iteration of classic ones while pursuing innovation.

Let's take a look at his story with LG503. Note: Article provided with permission from Mike.

ROKR Marble Explorer Marble Run LG503

I just completed the Marble Run LG503 and am very happy with the results.  I am amazed at the precision and accuracy of the parts, the quality of the graphical instructions, and the fit-up of the entire assembly.

I was born in 1941 and will remember in about 1947 my Dad and my uncle struggling to assemble one of my Christmas presents: a Japanese sheet metal toy gas station kit.  It was one of those “Tab A in Slot B” situations that resulted in the two adults throwing the thing in the air in frustration due to ridiculously inadequate instructions and parts that didn’t fit.  I think that’s when I learned, by example, to curse…

So, fast-forwarding 75 years to 2022, my wife gave me another Christmas gift kit, your LG503 kit.  By contrast, this kit is an amazing example of precision, accuracy, and proper function.  It is obvious to me that computer-aided design (CAD) was instrumental in its success.  I was amazed at the laser-cut parts sheets; I didn’t realize it was even possible to cut such narrow kerfs, leaving just enough material to easily snap the parts out of the sheets—I didn’t damage any of the parts.  I was also amazed that the slightly-oversized tabs fit into the slots with enough resistance to stay assembled without using any glue, aided in some cases by an extra cut in a tab to allow it to fit in an undersized slot.

The completed Marble Run now occupies a prime spot on my shelf of other treasured toys I’ve accumulated over the years:

Of course, being an engineer, I couldn’t resist making some “minor modifications and adjustments” as I completed the assembly:

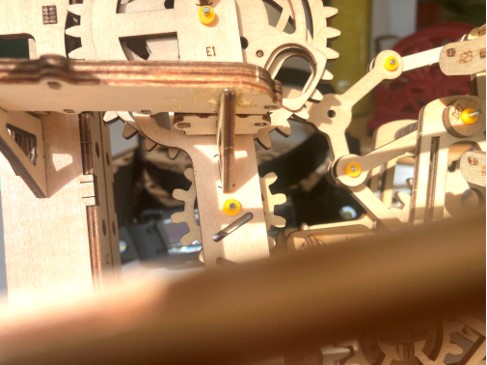

Plans Sheet 22- after I completed this step, the three gears that sit between D9 and E1 did not properly align axially with one another. Here are the problems I found and the fixes I made:

  • D9 was a little warped, which allowed the E8 gear assembly to move axially.
  • Removed the A17 spacer from the top gear.

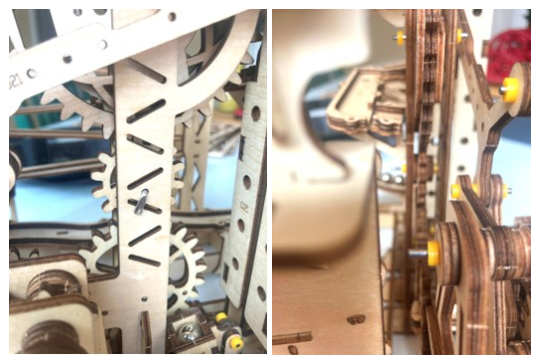

  • Fabricated a new, longer P4-type shaft for the E8 gear assembly and made a 90-degree bend in it.
  • Removed the old shaft from the E8 gear assembly and reassembled it with the new shaft, eliminating the P1 that was against E1, and installing a P1 on the outside of the E1. That allowed the three gears to properly align axially and removed the warpage from D9.

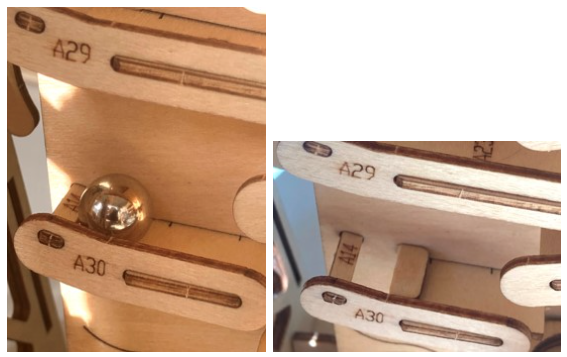

  • After assembly, I found that a marble making its way down the E2 assembly ramps (see Plans Sheet 30) would occasionally get caught on the A30 ramp between the A14 and A25 parts.  So, I bonded a small piece of scrap plywood from one of the parts sheets onto the A25 part; that prevented the marble from getting caught.

  • The only joint that did not stay without an adhesive was between the A40 and the C16 parts (see Plans Sheet 43).  However, a small dab of epoxy adhesive solved the problem.

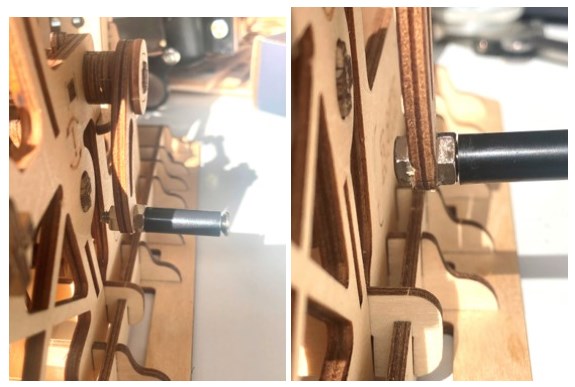

  • After assembly, as I operated the hand crank, the extra P11 screw length sticking out of the P12 nut (see Plans Sheet 17) would get caught on the E6 part.  So, I cut off the extra screw length and rounded off the corners of the nut, which eliminated the problem.

Congratulations on providing a really nice kit!



About this kit:

Name: Rokr Marble Explorer Marble Run LG503

Theme: wooden marble run

Type: 3D wooden puzzle self-assembly kit

Difficulty level: difficult(★★★★)

Pieces: 260
